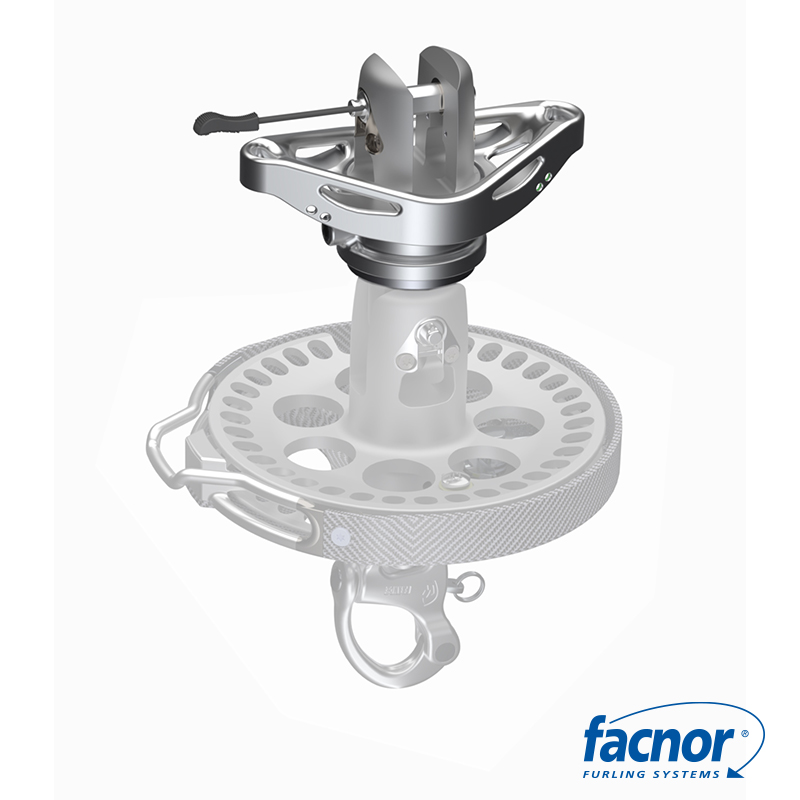

The FX+ furler, fitted with the Fast thimble, allows to furl in the asymmetric Spinnakers from the cockpit by pulling the bottom furling line. The anti-twist rope rotates up to the top and then transmits the rotation from the head to the tack of sail. And it is possible to use your existing asymmetric Spinnaker.
BENEFITS OF THE FAST FX+ for ASYMMETRIC SPINNAKERS
⊕ FAST thimble : with the FX+ furler, this FAST system allows you to use your FX+ from Gennaker to asymmetric Spinnaker in a two clicks
⊕ Possibility to use your existing asymmetric Spinnaker
⊕ Easy and regular furling from top to bottom (see picture below).
⊕ A.T. rope captive inside the luff tape
⊕ Same FX+ features : tested mechanisms, strong and clever, and quick release pin
⊕ Maintenance free : high protection of the mechanisms

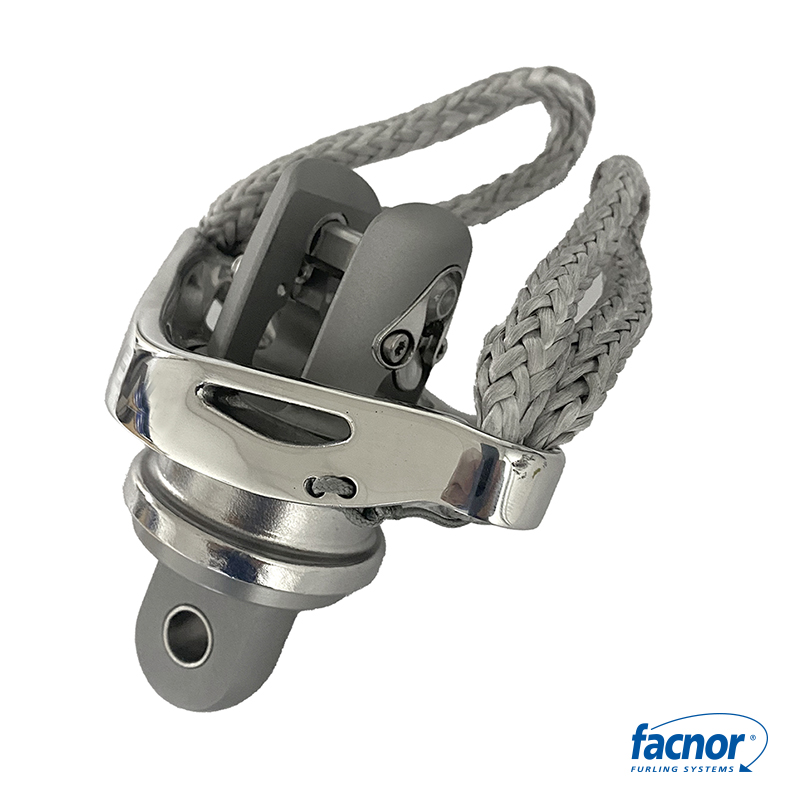

FAST OPTION FITTING for ASYMMETRIC SPINNAKER
Custom
Design intelligence
– Rotating tack fitting with Torlon®
– Fast Thimble perfectly designed to fit the FX+ drum jaws
– Safe tack attachment : resistant (stainless steel), smooth edge for a secure lashing (Tack attaching rope included)
Tack adjusting
Two options are available to adjust the tack of your asymmetric Spinnaker:
– SSH solid sheave;
– Soft converter
Learn more
HOW THE TOP-DOWN SYSTEM WORKS?
FAST FX+ MODELS and FEATURES
| Fast FX+ Models | FastFX+ 900 | FastFX+ 1500 | FastFX+ 2500 | FastFX+ 4500 | FastFX+ 7000 | FX+ 12000 |
|---|---|---|---|---|---|---|
| Boat Length (meters/feet) | 6 < 8,5 m 20 < 28' | 8,5 < 12 m 28 < 40' | 12 < 14 m 40 < 45' | 13 < 16 m 42 < 55' | 16 < 20 m 55 < 70' | >+20 +70' |
| max.Asym.Spi Area m2* | 40 m2 | 80 m2 | 150 m2 | 240 m2 | 340 m2 | CONTACT US |
| Safe Working Load** (tons) | 0,9 T | 1,5 T | 2,5 T | 4,5 T | 7 T | |
| REF. Fast FX+ pack | 43220700940 | 43220701540 | 43220702540 | 43220704540 | 43220707040 | |
| Fast click pack (+ ratchet system) | _ | 43220801540 | 43220802540 | 43220804540 | 43220807040 | |
| * for information only ** The S.W.L. is the max. safe working load over which distorsions of the furler can appear. This load is approx. 50% of the breaking load (depending on models) | ||||||
INSTALLATION & OPTIONS
OVERVIEW & MAIN ADVANTAGES
WEIGHT & DIMENSIONS
FASTFX+ COMPLETE KITS
The FASTFX+ complete kit include :INSTALLATION MANUAL
OPTIONS
TECHNICAL DOCUMENTATION
